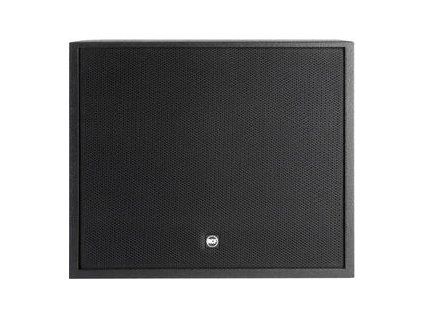

RCF Passive Subwoofer

The S 5022 is a vented, high output, compact subwoofer system where the physically small size and impact of a dual 12-inch driver is desired, and works equally well for portable or install situations. Extending the frequency response of these systems to below 40Hz this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and for AV presentations. The low-requency transducers are dual 12” woofer with a 2,5” voice coil. This new woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range. It is engineered to complement MEDIA series full-range oudspeakers and is particularly well-suited in high-quality multi-media applications.Features2 x 12" high-efficiency 2.5" voice-coil woofer133 dB maximum sound pressure levelSystem Power rating 600 Watt RMSM20 standard pole mount in top section of cabinetRecessed Euroblock Input-Output connectorsProtective metal grille, polyester fabric coatedIntegrated recessed hand carry pointsAcoustical Specifications Frequency Response -10 dB: 50 Hz ÷ 200 HzMax SPL @ 1m: 133 dBSystem Sensitivity: 99 dBNominal Impedance: 4 Power Handling: 600 WPeak Power Handling: 2400 WRecommended Amplifier: 1200 W Transducers Woofer: 2 x 12" woofer, 2.5" voice coilNominal Impedance: 8 Input Power Rating: 300 W AESSensitivity: 96 dB Input SectionInput connector: 4-pin EUROBLOCK® Cabinet Cabinet Material: Rectangular, 15 mm MDFHardware: Pole mountPole Mount/Cap: YesGrille: Steel, with a robust double mesh polyester clothingColour: Black Physical Specifications Height: 380/14.96 mm/inchWidth: 867/34.13 mm/inchDepth: 420/16.53 mm/inchNet Weight: 33.2/73.14 kg/lbs.
