Magnat Interior IC

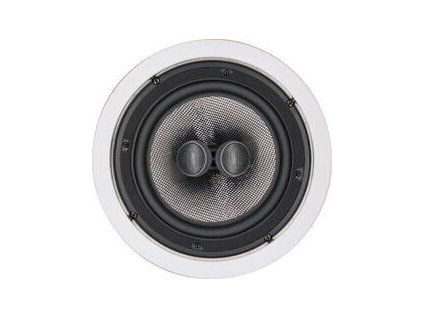

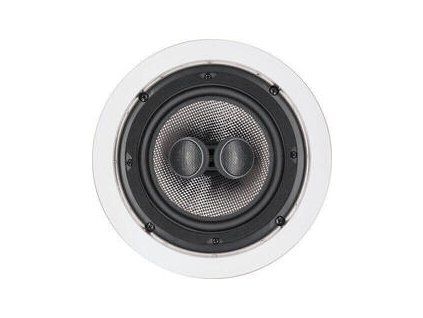

The IC 82 is the larger of two strong-sounding built-in ceiling loudspeakers in the Interior series. As with all models in the series, the bass/mid-range cone has been manufactured from a carbon-glass-fibre mix – which guarantees extremely high stability and a very clear and dynamic sound. The two built-in coaxial tweeters make two circuit versions possible – sound directed over a wide area or at specific points. A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease. Technical specifications:

PRINCIPLE - 2-way in-wall/in-ceiling loudspeaker DRIVERS - 200 mm woofer 2 x 19 mm tweeter POWER HANDLING (RMS/MAX.) - 100 / 180 watts SENSITIVITY (2.8V/1M) - 91 dB IMPEDANCE - 4 – 8 Ohms FREQUENCY RESPONSE - 32 - 35000 Hz CROSSOVER FREQUENCIES - 3500 Hz RECOMMENDED AMPLIFIER OUTPUT - 20 - 180 Watts OUTER DIMENSIONS Ø - 272 mm CUTTING OUT Ø - 238 mm MOUNTING DEPTH - 100 mm
