EarthQuaker Devices V3

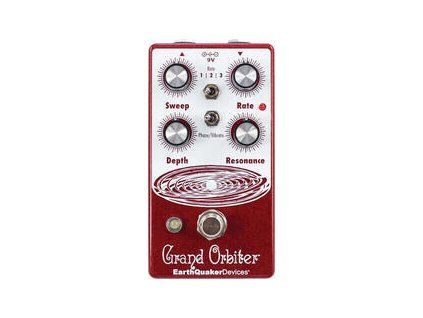

Four/stage OTA-based (Operational Transconductance Amplifier) phaser with a diverse feature set that can go from stationary and resonant to slow and mellow and on through fast and swirly. It has three-way toggle switch to select between the ranges of modulation: Rate 1 is slow sweep mode, Rate 2 kills the LFO and allows user to use the pedal as a fixed resonant filter and Rate 3 is fast sweep mode. The master Rate control fine tunes the speed of the LFO in each of these modes and the flashing red LED acts as a visual indicator, even when the effect is in bypass mode. The Depth control blends the shifted signal in with the dry signal and controls the intensity of the effect. The Sweep control governs the peak frequency of the phased signal’s tone, turned full clockwise the sweep is lively and intense, whereas turning counter clockwise yields a darker, more laid back peak. The Resonance provides a wide range of control over regeneration and at higher settings adds a more pronounced and resonant tone. The pedal can be also used as a true pitch vibrato with the “Phase/Vibrato” switch. When in “Vibrato” mode, the dry signal is removed and the Depth controls acts as a volume control. This pedal is 100% analogue and true bypass. Dimensions: 120.7 x 63.5 x 57.2 mm.
